#Typical Looking, Uncommonly Efficient and Healthy

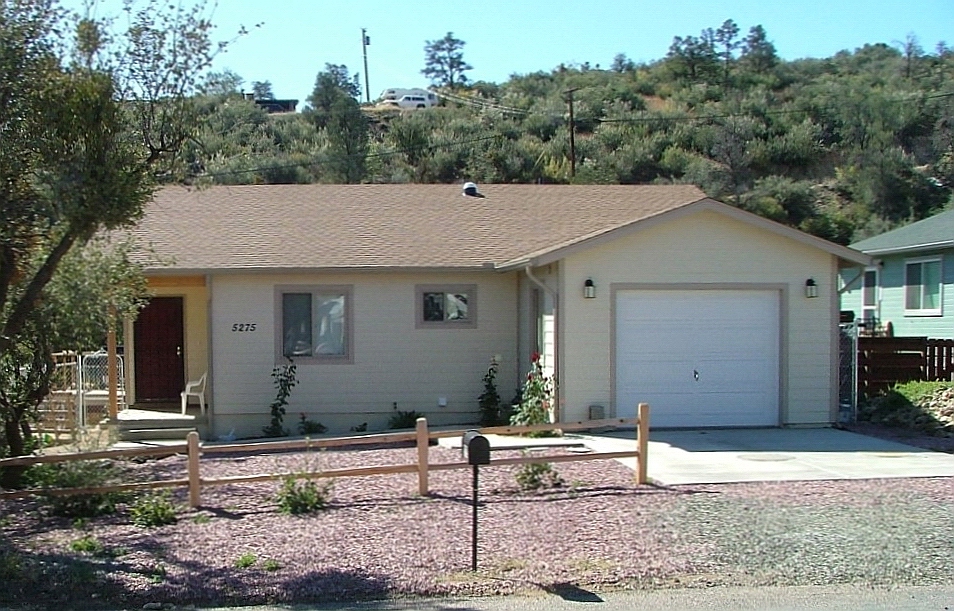

This rather typical-looking single-story ranch house is very uncommon in a lot of ways. It’s super energy-efficient, it has superior indoor air quality compared to most new houses, and it cost $55/square foot to build.
That it was so cheap to build flies in the face of conventional thinking about green building. How was this done? Tradeoffs. Fewer studs means more room for insulation. Roof overhangs and quality windows mean a smaller AC system. An unvented roof means the AC and ducts can go in the attic.
Make the site work without overdoing it
The cost savings began with the site: a substandard lot (thanks to flood-plain issues) was engineered to bring it up to code. While there was a high level of engineering involved, the lot was kept localized as much as possible — many existing trees and shrubs were spared. No toxic pesticides were sprayed before construction, and the house is oriented along an east-west axis to maximize southern exposure for day lighting, passive warming in winter, and solar collectors on the roof that heat the water for free.
Standard green details done well
Advanced framing, exterior foam insulation, and an unvented roof yielded an extremely tight envelope — .63 ACH, at no “extra” cost. A smart plumbing layout cuts the amount of time it takes for hot water to reach a tap, which saves water. Many of the techniques used in the design and construction of this house are old news: insulating a slab keeps it warm and dry; foam sheathing on the outside keeps the framing warm and dry, so mold isn’t likely to gain a foothold; and better windows are worth it.
Get building science and energy efficiency advice, plus special offers, in your inbox.
Because of the small lot size, a standard septic leach field was not feasible for this project. Tony Grahame, director of Yavapai College's Residential Building Technology program, solved this problem with the Geotextile Sand Filter system made by Eljen.
A plastic grid covered in a special drainage fabric allows for more surface area, more volume, and more air infiltration than the typical bed of gravel. The result is that you get a leach field that will likely perform better while taking up 50% less space. Using this system was the only way to build a home on this particular site, but it would be valuable to anyone trying to keep site disturbances to a minimum.
General Specs and Team
Student labor was free
Builder: Yavapai College Residential Building Technology program; Tony Grahame, Director.
Architect/designer: Prescott-area Habitat for Humanity
Foundation: slab on grade with XPS foam at edge (R-5)
Walls: 2x4 @ 24 in. o.c.; 1-in. XPS foam and dense-pack cellulose (R-19 total)
Roof: raised heel trusses; 8 in. foam sprayed to underside of roof deck (R-32, unvented).
Windows: double-pane, low-e, argon-filled (SHGC, .33 to .35; U factor, 0.32 to 0.35, R-3)
Garage: attached; insulated and sealed from living space
- Roof overhangs optimally sized for window heights to allow summer window shading and winter sun entry for passive solar heating.
- Energy Star interior and exterior lighting package with CFL bulbs
- Extremely tight building envelope (103 cfm @ 50 pascals equivalent to 0.63 ACH)
- Energy Star appliances
- HVAC requirements calculated and sized appropriately
- Programmable thermostats
- Sealed ductwork; duct blaster leakage measured 14 cfm @ 25 Pascals
Heating/cooling: 14-SEER Energy Star AC system; 40,000 BTU direct-vent gas furnace (92.0 AFUE)
Water heating: solar domestic hot-water system, 40.9 sq. ft. flat-plate collector, 80-gal. storage tank with electric backup
HERS rating: 57 (5 stars)
Annual energy use: 40.8 MMBtu
- Low-flow toilets, faucets, and showerheads
- Water-conserving dishwasher
- All hot water taps within 30 ft. of hot-water storage tank
Indoor Air Quality
- Balanced whole-house ventilation with MERV-10 and HEPA filtration
- Moisture-mitigation techniques including damp-proof subslab, soil surface graded away from house, foundation drains around perimeter, plastic sheet under slab, wall system designed for drying to inside and outside, appropriately size HVAC controls humidity
- Garage pressure-isolated from living space
- Radon venting
- No carpets
- Multiple-return grills provide pressure-balancing between rooms
- All ductwork within conditioned space
- Spot ventilation in bathrooms
Green Materials and Resource Efficiency
- Advanced framing techniques
- House designed in 2-ft. increments to conserve materials
- Cellulose insulation made with recycled paper
- Composite decking contains recycled plastic
- Cardboard and metal construction waste recycled
Alternate Energy Utilization
Solar water heating: 40.9sq.ft. SunEarth flat-plate collector; Solaraide 80-gallon hot-water storage tank/electric backup heater
NAHB Energy Value Housing Award: gold
EnergyStar: qualified based on HERS score (57)
Checking on the true cost
